SPECIFICATIONS

Additional Function: Face Priority

Brand Name: JSAV

Certification: CE,FCC,RoHS

High Definition Support: 4K

High-concerned chemical: None

Inbox adaptor: Yes

Model Number: JS5012USH4K

Optical Zoom: 10x - 20x

Origin: Mainland China

Pixels: 8 million

Power Source: DC

Sensor Size: 1 / 1.8 Inches

Sensor Type: CMOS

Supporting Language: English,Simplified Chinese

Type: Professional

Use: Professional

Weight: 1001g and above

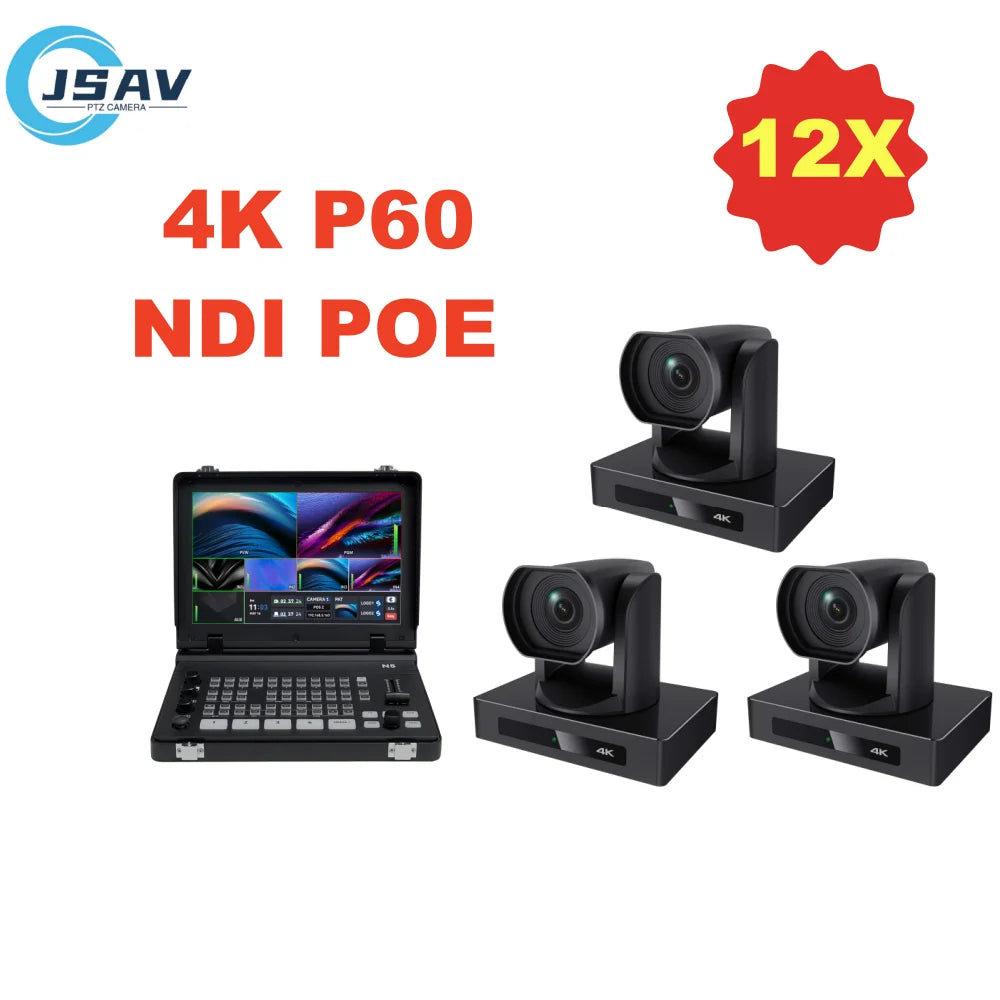

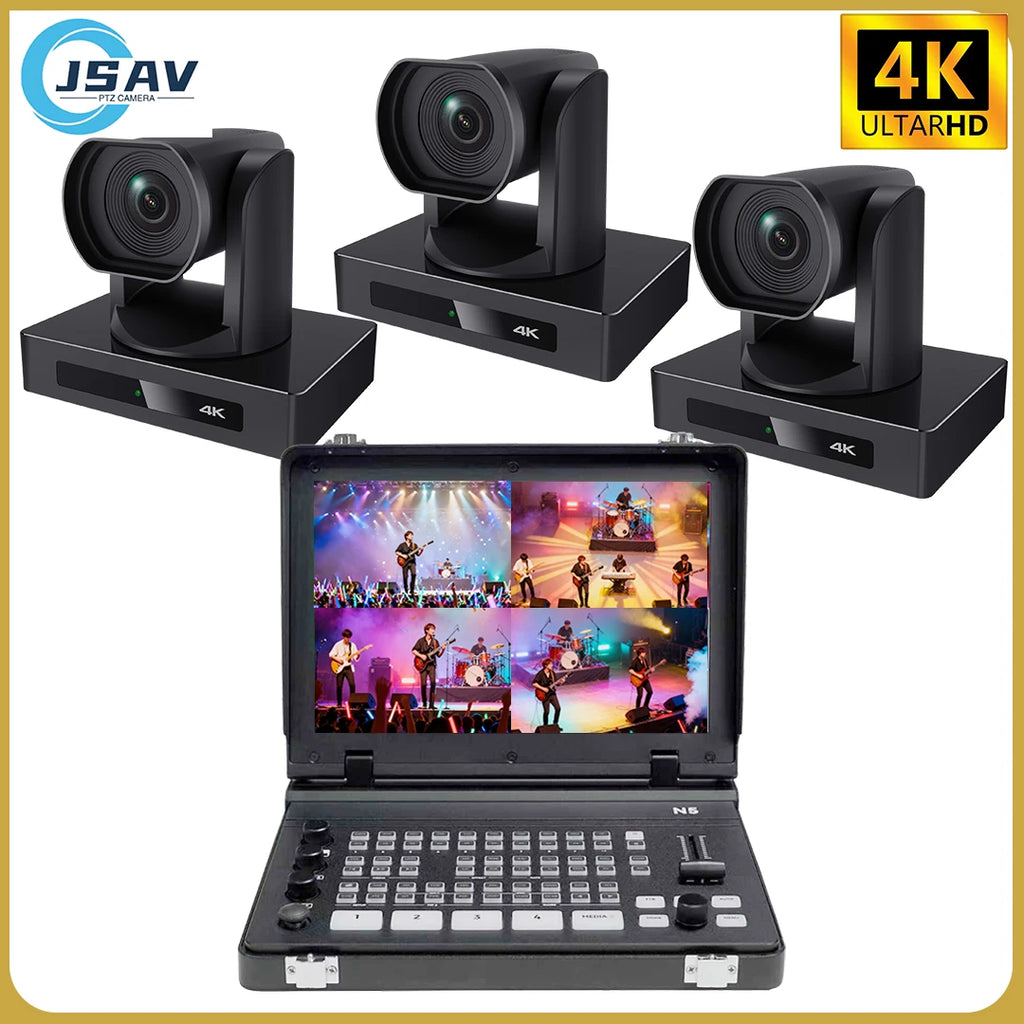

JSAV 4K 60FPS NDI Camera PTZ 1pc-3pcs SDI HDMI POE SDI 12X 1PC Video Switcher Conference Camera for Church Business Meeting

JS5012USH4K PTZ Camera:

l True 4K ultra - high - definition images
It adopts a 1/1.8 - inch, 8.51 million effective pixel high - quality "Exmor R" CMOS Sensor, which can achieve high - quality images with 3840×2160 ultra - high resolution. While ensuring ultra - high definition, it focuses on meeting the demand for picture fluency.

l Low noise and high signal - to - noise ratio
It applies 2D and motion estimation - based 3D noise reduction algorithms and adopts a new generation of low - noise sensors, which effectively reduces noise.

l 12x optical zoom, 82.5 - degree wide angle, 16x digital zoom
12X optical zoom, 82.5 - degree horizontal viewing angle, 16x digital zoom.

l 4KP60 ultra - high - definition HDMI video output
It supports various ultra - high - definition video formats such as 4KP60/50/30/25, 1080P60/50/30/25, 720P60/50.

l 4KP60 ultra - high - definition network video output
It supports various ultra - high - definition video formats such as 4KP60/50/30/25, 1080P30/25, 720P30/25.

l 4KP30 ultra - high - definition USB3.0 video output
It supports various video formats such as 4KP30/25, 1080P30/25, 720P30/25.

l 3G - SDI high - definition output
It supports various high - definition video formats such as 1080P60/50/30/25, 720P60/50.

l Multiple network protocols:

 It supports ONVIF, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols; supports RTMP push mode and RTP multicast mode.

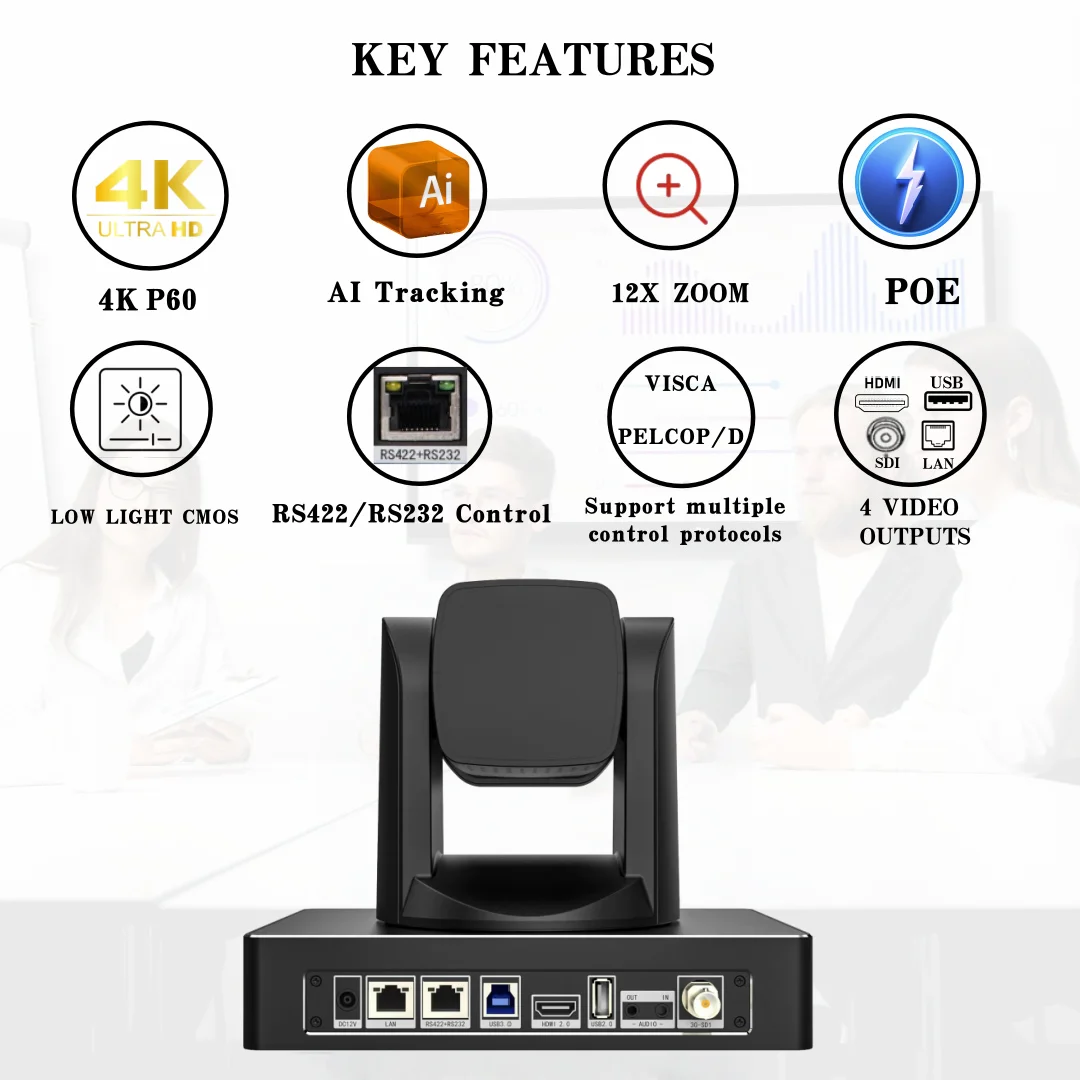

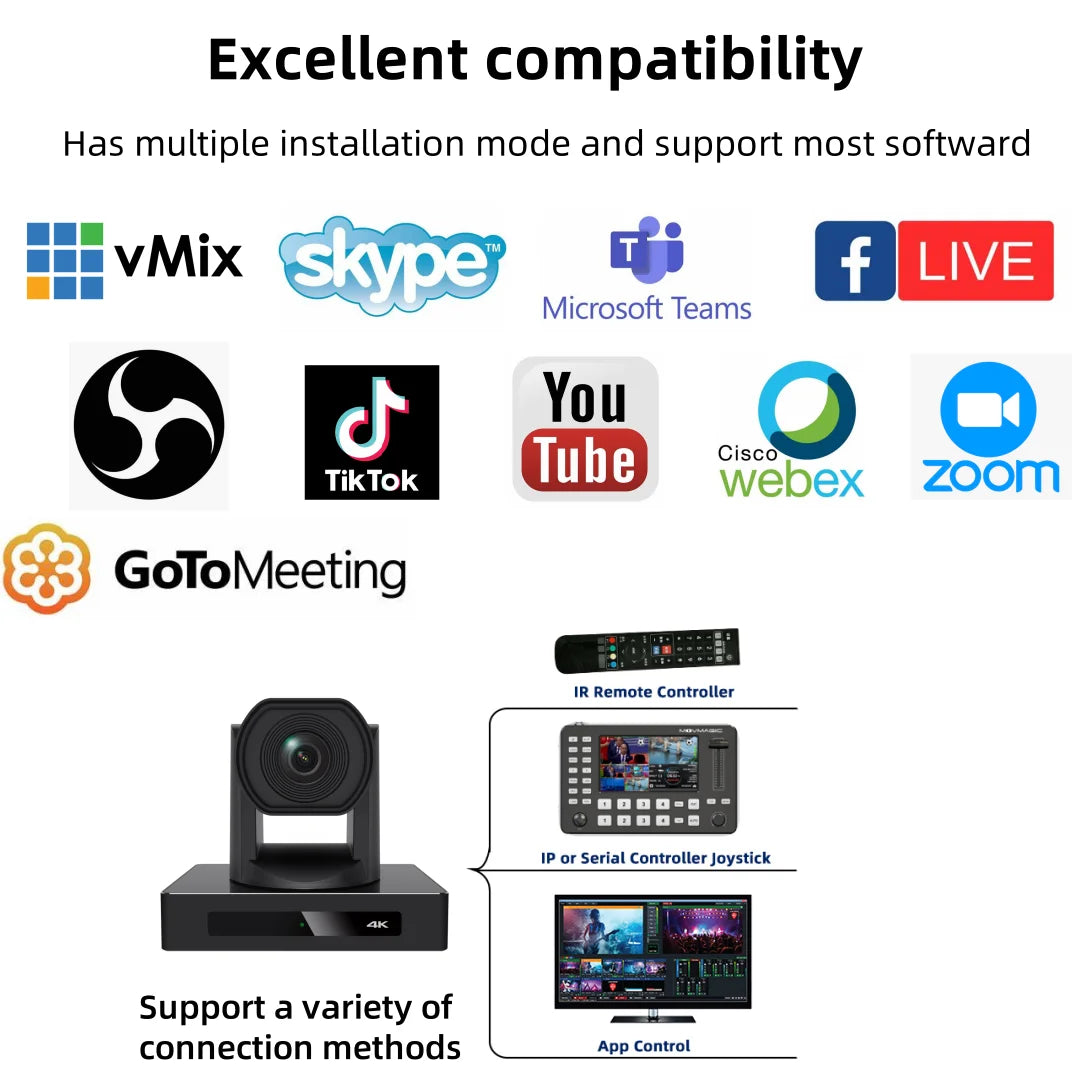

l Control interfaces:

RS422 is compatible with RS485, RS232 - IN, RS232 - OUT, and the RS232 interface supports cascading.

l Multiple control protocols:

 It supports VISCA, PELCO - D, PELCO - P protocols and automatic protocol identification.

l 255 presets
255 positions can be preset through the serial port, including horizontal, pitch and zoom. Even when the camera is powered off, the preset data can be saved.

l Multi - function remote control
Equipped with an easy - to - operate remote control, which can not only perform basic settings and control horizontal, pitch, zoom, etc., but also call up the menu to set the relevant parameters of the camera through the remote control.

l OSD Chinese and English menu function
Rich OSD menu, which can control the Chinese and English OSD menu with the remote control.

l AI tracking
Built - in high - speed processor and adopts exclusive advanced image processing and analysis algorithms. Users can choose real - time tracking and regional tracking according to the use environment.

l Multiple application places:

conference, education, live broadcast, medical treatment, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, justice, public security, military and other system applications.

Ø Support fog penetration function

Ø HDMI interface supports simultaneous audio and video output

Ø Support image freeze function

Ø Support preset cruise function

Ø Support POE function (optional)

Ø Support NDI function (optional)

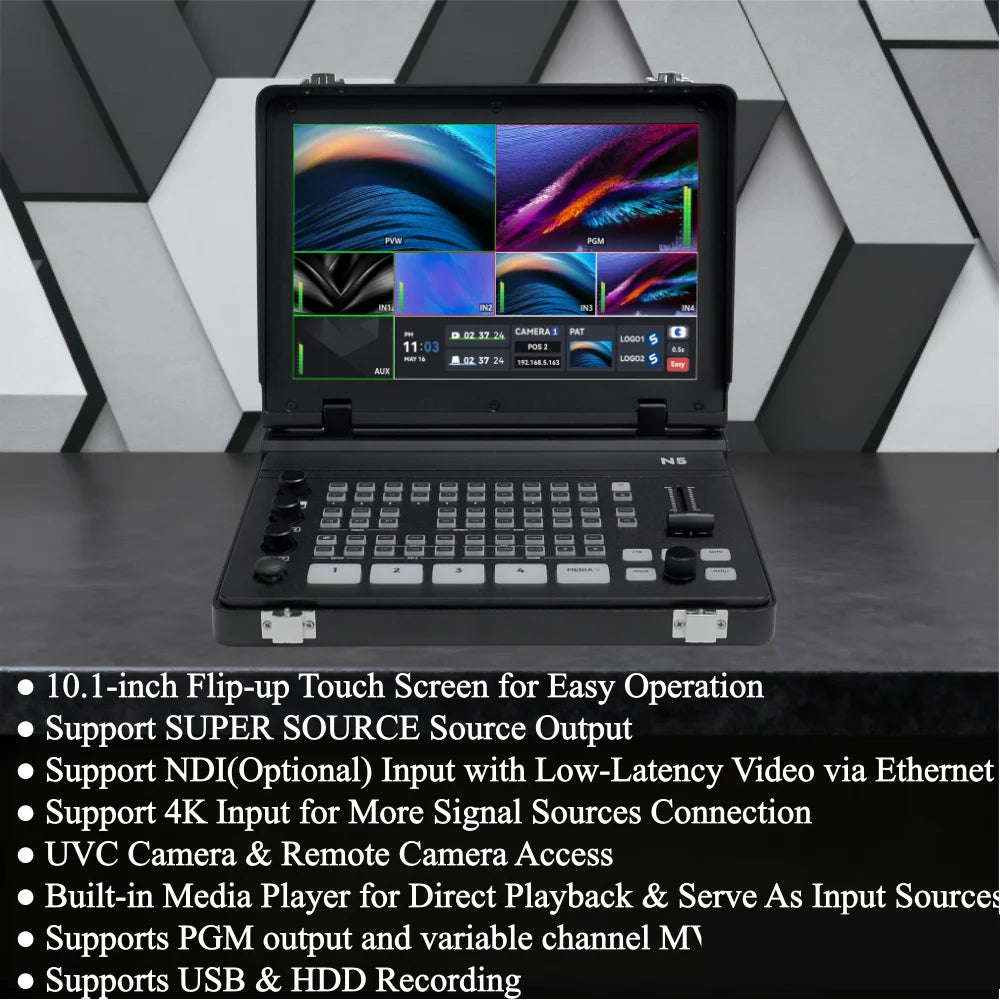

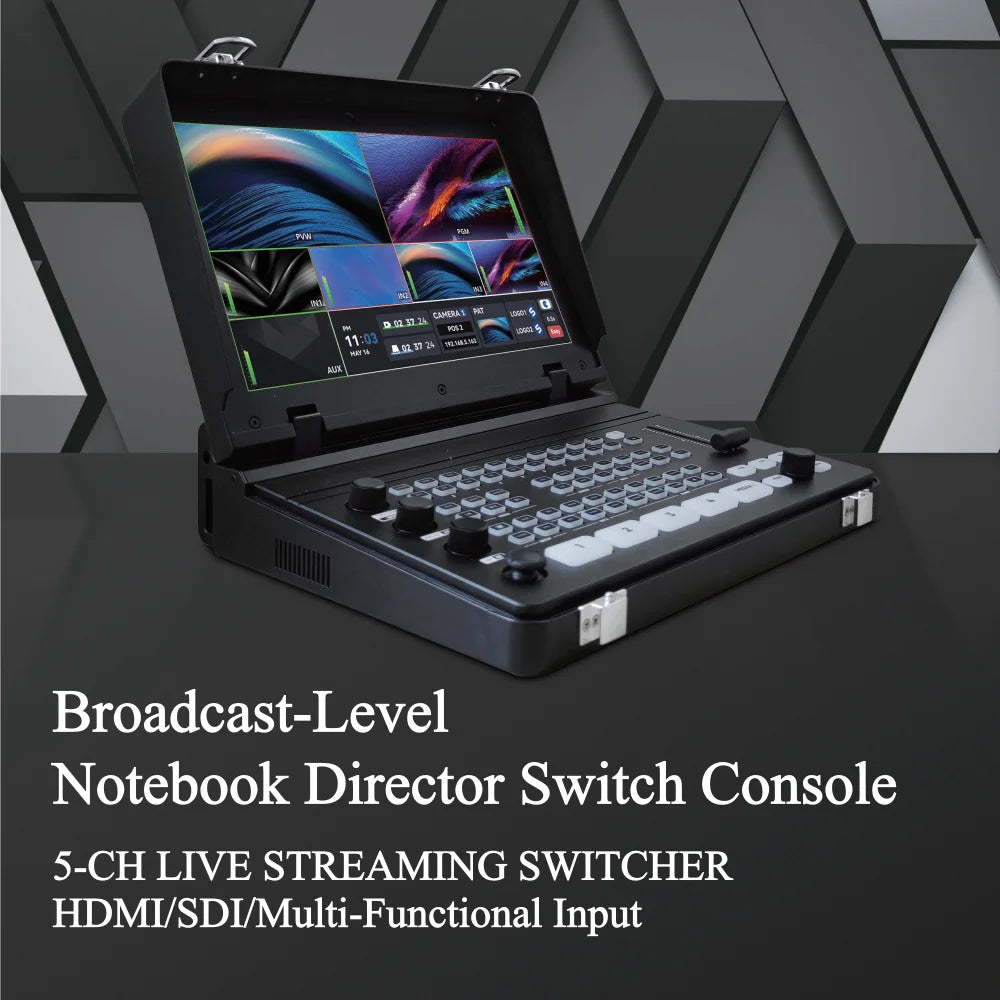

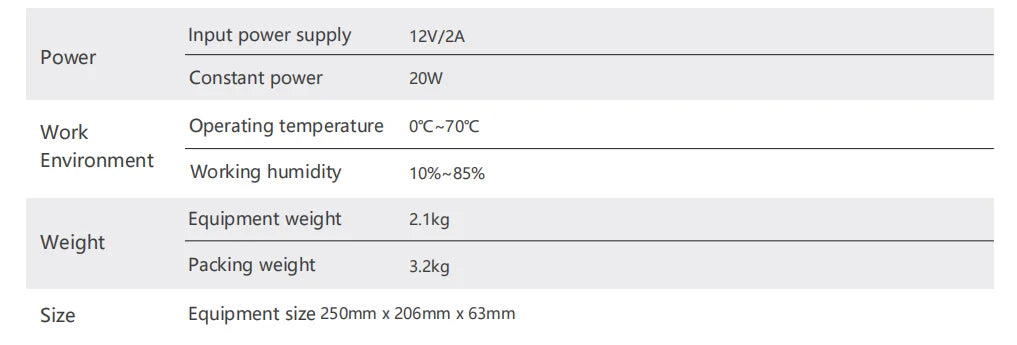

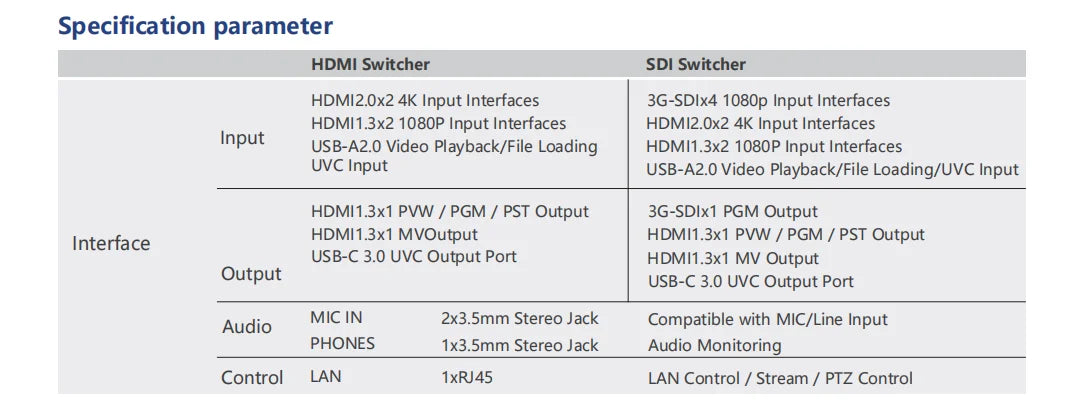

Video Switcher Specifications：

● 10.1-inch Flip-up Touch Screen for Easy Operation

● Support SUPER SOURCE Source Output

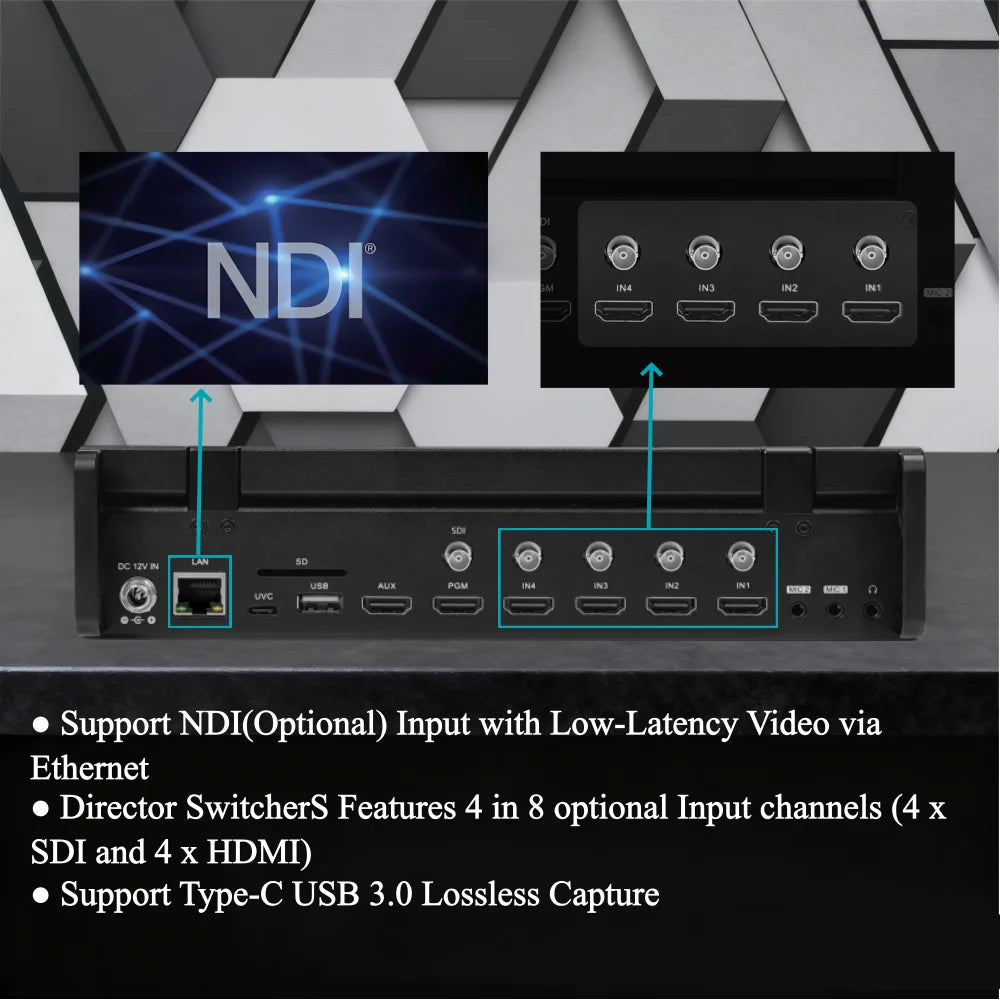

● Support NDI(Optional) Input with Low-Latency Video via Ethernet

● Director SwitcherS Features 4 in 8 optional Input channels (4 x SDI and 4 x HDMI)

● Support Type-C USB 3.0 Lossless Capture

● Support 4K Input for More Signal Sources Connection

● UVC Camera & Remote Camera Access

● Built-in Media Player for Direct Playback & Serve As Input Sources

● Supports PGM output and variable channel MV output

● Supports USB & HDD Recording

● Built-in Portrait & Landscape Screen Rotation & Switch

● Built-in Web Server for Remote Control

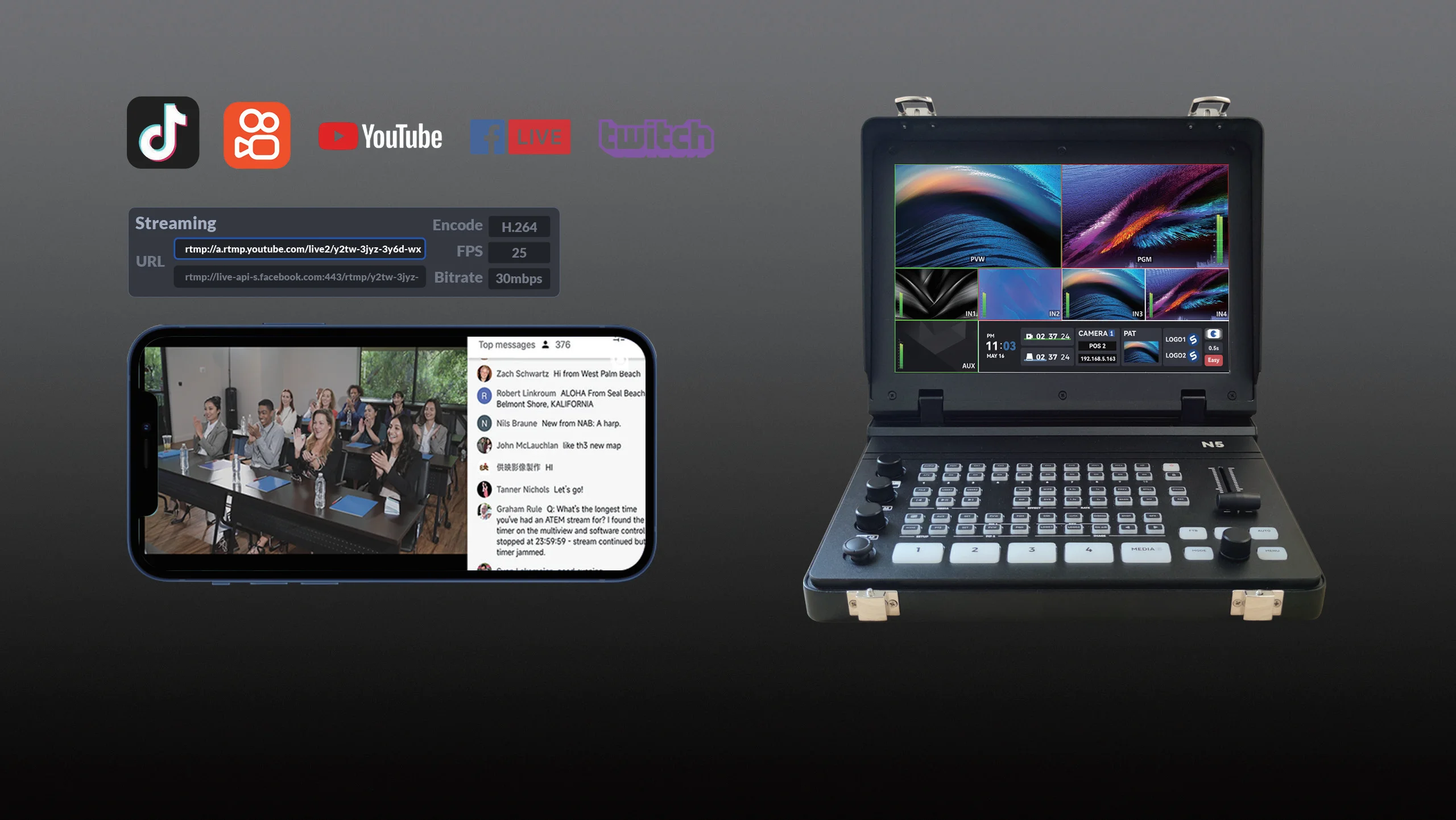

● Support Dual Channel Stream via Ethernet

Q&A

Q：Is this PTZ camera 4K? Because I bought one from a different seller (not from you) which was advertised as 4K, but when I used it, it could only achieve a resolution of 1080p.

A:Yes, our product is a genuine 4K product, and its highest resolution is 3840*2160.Of course, we also have 1080P products. Please select the products according to your needs.

Q：Does it support NDI and PoE?

A：All of our products support PoE (Power over Ethernet) power supply. Only one network cable is needed to achieve power supply, control, and image transmission. Regarding the NDI issue, you can choose to directly purchase products with NDI functionality. Of course, we can also activate the NDI feature at a later stage.

Q：What brand are you?

A：We are the brand of JIANSHIAV. We are a well-known Chinese company integrating production, research and development, and sales. We can provide you with our existing products. Most importantly, we can customize products according to your needs. Meanwhile, we also have a great advantage in terms of price.

Q：The quality of your products?

A：We are a factory that manufactures cameras. We have professional production lines and dedicated quality inspectors to ensure that each product meets the standards. Please feel free to make a purchase with confidence. Meanwhile, we also have professional customer service staff who are available online 24 hours a day, ready to solve customers' problems at any time.

Q：Is there a warehouse in Brazil? And do we need to pay taxes?

A：Yes, our products are in the local warehouse in Brazil, and there is no need to pay taxes. If you have any questions, please consult our customer service staff.

Q：What are the differences between the silver-white products and the black products?

A :  The silver-white products and the black products are of the same model. Different appearances are designed to meet the needs of different customers. The functions and performance of the two versions are identical. Please feel free to make a purchase.
